Making your first long-distance contact using traditional voice modes is incredibly thrilling. However, there comes a moment in every amateur radio operator’s journey when you gaze at the vast HF spectrum and want to explore the mysterious, chirping sounds occupying the digital segments of the bands. Whether it is the rapid-fire global exchanges of FT8, the classic clatter of radioteletype (RTTY), or the weak-signal wizardry of JS8Call, entering the world of advanced digital operation completely changes how you experience ham radio.
To unlock these highly efficient modes, you must first bridge the gap between two of the most powerful tools in your shack: your radio transceiver and your personal computer. Interfacing these two devices allows your computer to control the radio’s VFO dial automatically while transforming your PC’s soundcard into a highly sensitive digital modem.
For many new hams, the thought of connecting a radio to a PC brings up worries of ground loops, confusing virtual COM ports, blown audio circuits, and endless cable tangles. Do not worry. In this exhaustive, step-by-step master guide, we will break down the entire process into clear, easy-to-understand milestones. From choosing the correct hardware interfaces to troubleshooting driver issues and configuring your software, this post is designed to be the ultimate definitive resource for your digital shack station.
📋 Table of Contents
- 🏗️ 1. The Core Architecture of Computer-Transceiver Interfacing
- 🎛️ 2. Demystifying CAT Control: The Brains of the Operation
- 🔊 3. The Audio Pipeline: Getting Sound In and Out Safely
- 📦 4. Hardware Selection: Integrated USB vs. External Interfaces
- 💻 5. Step-by-Step Configuration in Windows and Linux Device Managers
- ⚙️ 6. Software Setup Blueprint: Configuring WSJT-X and FLdigi
- 🛡️ 7. Preventing the Ultimate Enemy: RFI and Ground Loops
- 🎙️ 8. Conclusion & Community Shack Log
🏗️ 1. The Core Architecture of Computer-Transceiver Interfacing
To understand how a digital mode works, we need to trace the path a signal takes. When you operate an advanced digital mode, you are not speaking into a microphone. Instead, you type a message or select a command on your computer screen. Your logging or digital mode software translates this information into a complex series of audio tones.
These tones must travel securely out of your computer’s audio system, pass into the transceiver’s microphone or auxiliary input circuit, and be transmitted over the airwaves as radio frequency (RF) energy. Conversely, when receiving, the radio picks up tones from the air, pipes that raw audio into the computer’s microphone input, and the software decodes those sounds back into readable text or data.
Simultaneously, a separate digital conversation must happen between the computer and the radio. The software needs to know exactly what frequency the radio is tuned to, what mode it is running (such as Upper Sideband or USB-Data), and it must tell the radio exactly when to switch from receive to transmit mode.
Therefore, any complete computer-to-transceiver interface system requires two distinct pipelines working in absolute harmony:
🎛️ The Control Pipeline: Also known as CAT (Computer Aided Transceiver) control, which handles commands, frequencies, and data.
🔊 The Audio Pipeline: Which carries the analog audio signals back and forth between the radio’s intermediate frequency circuits and the computer’s sound card processors.
🎛️ 2. Demystifying CAT Control: The Brains of the Operation
CAT control is what makes advanced digital operation feel completely seamless. Instead of manually adjusting your radio dial every single time you change bands in your software, CAT control lets the computer handle the tracking instantly.
Historically, older radios utilized highly proprietary, complex serial communication protocols. For example, Icom developed the CI-V (Computer Interface 5) bus system, which allowed multiple devices to communicate over a single 3.5mm mono cable. Yaesu and Kenwood relied on traditional multi-pin RS-232 serial ports that required bulky cables and native physical serial ports on the back of older desktop computers.
In modern operations, almost all CAT control relies on virtual serial communication over standard USB lines. Inside modern transceivers, manufacturers build in a specialized microchip called a USB-to-UART bridge (commonly manufactured by companies like Silicon Labs or FTDI).
When you plug a simple USB cable from your modern radio into your PC, your operating system detects this chip and creates a Virtual COM Port. The software talks to this virtual port just like it would talk to an old-school serial cable, using specific data speeds known as Baud Rates. Understanding your specific radio’s default baud rate and unique hexadecimal address code is the absolute key to making rig control work flawlessly.
🔊 3. The Audio Pipeline: Getting Sound In and Out Safely
While getting the control pipeline working is a matter of software settings, setting up the audio pipeline requires careful attention to signal levels and circuit protection. You cannot simply slice open a standard auxiliary audio cable and wire your computer’s speaker output directly into your radio’s microphone jack without experiencing severe technical consequences.
The first major issue is the stark difference in signal levels. A computer’s headphone or speaker output delivers a relatively high-voltage line-level signal. A radio’s microphone input, however, is designed to receive incredibly tiny, low-voltage signals generated by a human voice vibrating a microphone element. If you inject line-level audio directly into a mic jack, you will severely overdrive the input stage, causing terrible audio distortion, splatter across the band, and potentially damaging the internal circuitry of your radio transceiver.
The second, more insidious problem is common-mode noise and ground loops. Computers are notorious for generating massive amounts of electromagnetic hash from their internal switching power supplies, hard drives, and cooling fans. If you link the electrical ground of your computer directly to the electrical ground of your radio via a continuous copper wire, this electrical noise will ride along the cable shield. It enters your radio as a loud, buzzing hum that can completely blind your software’s ability to decode weak digital signals.
To fix this, high-quality audio interfaces use tiny 1:1 audio isolation transformers. These components allow the audio signals to pass through magnetically via induction, while completely breaking the physical copper connection between the two devices. This isolation ensures absolute audio purity and completely protects your delicate equipment from unexpected voltage spikes.
📦 4. Hardware Selection: Integrated USB vs. External Interfaces
The exact hardware you need depends entirely on the age and model of the radio transceiver sitting on your workbench. Let’s divide transceivers into two major categories to see where your station fits.
🔌 Integrated USB Radios (The Modern Standard)

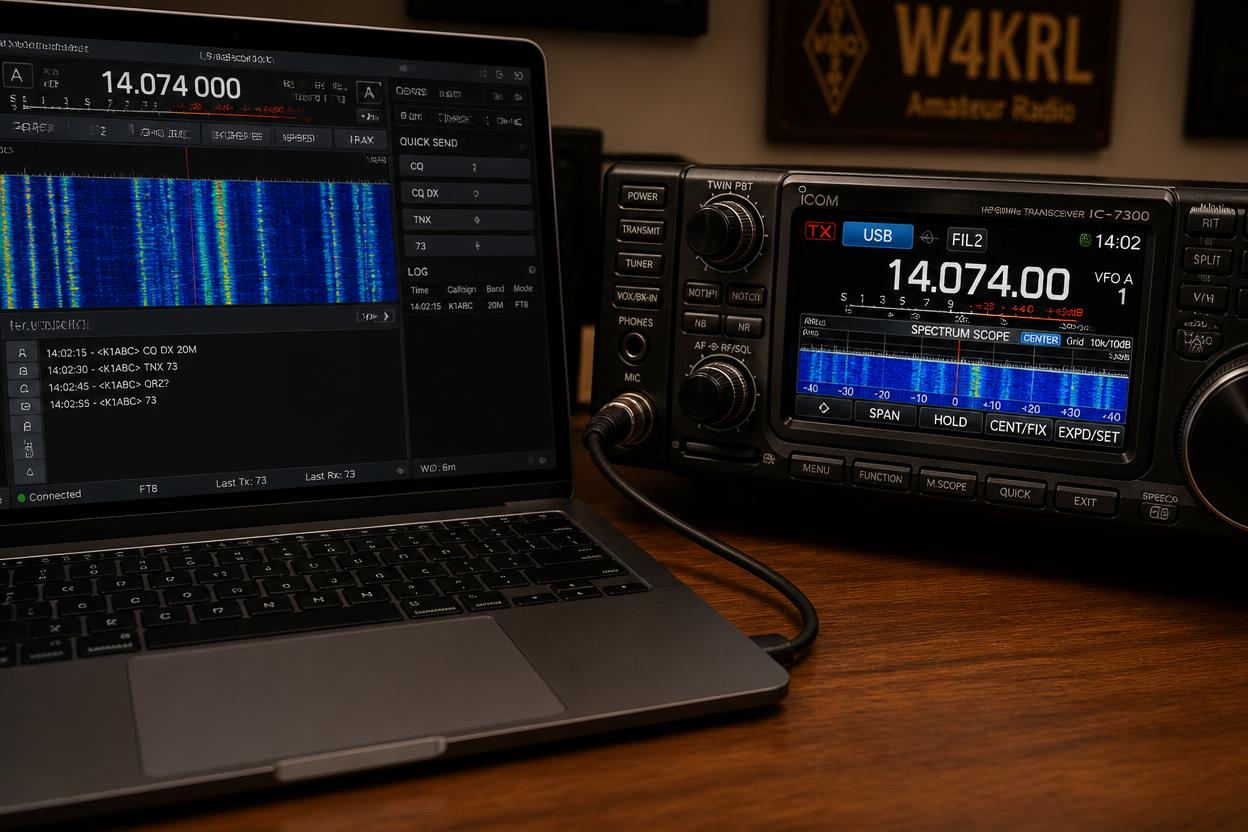

If you are lucky enough to own a modern, current-generation transceiver like the Icom IC-7300, Yaesu FT-710, or Yaesu FTdx10, the process is incredibly straightforward. Manufacturers have wisely built the entire soundcard audio codec and the USB-to-UART CAT bridge directly onto the radio’s main internal circuit board. For these modern rigs, you do not need to buy any expensive external black boxes. A single, standard USB A-to-B cable (often called a printer cable) carries both the virtual COM port data and the bidirectional digital audio channels simultaneously.
🔧 Legacy Radios (Requiring External Audio Interfaces)
If you are operating a classic, reliable legacy radio that lacks a built-in internal soundcard—such as an older Yaesu FT-857D, Icom IC-706, or Kenwood TS-480—you will need an external interface box to act as the middleman between your computer’s USB ports and the radio’s accessory ports.
🐯 SignaLink USB: The TigerTronics SignaLink USB has been a legendary staple in amateur radio shacks for years. It contains its own dedicated internal USB soundcard and an ingenious, built-in voice-activated (VOX) delay circuit. It features convenient, physical analog control knobs on the front panel, allowing you to manually adjust your transmit power and receive audio levels instantly without diving into confusing computer software volume menus.
📱 Digirig Mobile: The Digirig Mobile is a fantastic, highly compact modern alternative that has taken the portable and digital operating community by storm. It is incredibly small, budget-friendly, and houses both a high-quality audio codec and an integrated serial CAT control rig interface inside a rugged, shielded aluminum enclosure. Using specialized, custom patch cables tailored to your exact radio model, it cleanly condenses your entire station footprint down to a single USB-C cable running to your laptop computer.
💻 5. Step-by-Step Configuration in Windows and Linux Device Managers
Before opening your digital operating software, you must ensure that your computer’s operating system recognizes your hardware interfaces perfectly. Let’s walk through the exact steps to verify your connections.
🪟 Windows Configuration Routine
1️⃣ Step 1 — Connect your radio or external interface to a USB port on your PC, and turn the transceiver’s power switch ON.
2️⃣ Step 2 — Right-click on the Windows Start menu button and select Device Manager from the list.
3️⃣ Step 3 — Scroll down to the Ports (COM & LPT) section and click the arrow to expand it. You should see a new entry labeled something like Silicon Labs CP210x USB to UART Bridge or FTDI USB Serial Port, followed by a specific number in parentheses, such as (COM3) or (COM4). Note this exact COM port number down; you will need it later.
4️⃣ Step 4 — Next, expand the Audio inputs and outputs section at the top of Device Manager. Verify that you see a new generic audio device listed, usually named USB Audio CODEC.
5️⃣ Step 5 — To prevent total confusion during operations, open your Windows Control Panel, go to Sound Settings, find this specific USB Audio CODEC device, and rename it to “Radio Audio” for both the playback and recording tabs.
🐧 Linux Configuration Routine
If you are running your radio shack using a Linux distribution, open your terminal window and type the command lsusb. Look through the output list to verify that the FTDI or Silicon Labs serial controller is detected by the Linux kernel.
To find the exact address path of your virtual serial connection, run the command dmesg | grep tty. The system will display the assigned port path, which will typically look like /dev/ttyUSB0 or /dev/ttyACM0.
Finally, ensure your active Linux user account belongs to the dialout system permission group by running sudo usermod -a -G dialout $USER, allowing your software full read and write access to the serial hardware without permission blocks.
⚙️ 6. Software Setup Blueprint: Configuring WSJT-X and FLdigi
With your hardware safely connected and verified by the operating system, it is time to configure your digital mode software engines. Let’s focus on the settings for WSJT-X, the official software suite used for FT8 and FT4 operations.
| WSJT-X Settings – Rig Configuration Blueprint |
+————————————————————-+
🔧 Detailed Software Settings Step-by-Step
1️⃣ Step 1 — Open WSJT-X and navigate to File → Settings, then click on the Radio tab.
2️⃣ Step 2 — Rig Selection: Choose your exact radio model from the drop-down menu. If your radio is very new and not listed, consult your manual to see if it can emulate an older, classic model protocol.
3️⃣ Step 3 — Serial Port & Baud Rate: Choose the exact COM port number you verified inside your Device Manager. Set the Baud Rate to match the exact speed configured inside your radio’s internal settings menu. Common defaults are 19200, 38400, or 115200.
4️⃣ Step 4 — PTT (Push-To-Talk) Method: Select CAT. This tells the software to use digital command data to key the transmitter, rather than relying on external hardware switching lines.
5️⃣ Step 5 — Test CAT & Test PTT: Click the Test CAT button. The button should turn bright green, indicating the computer can read your radio’s frequency perfectly. Once green, click Test PTT to confirm your radio briefly keys into transmit mode successfully (ensure a dummy load or resonant antenna is connected during this test!).
6️⃣ Step 6 — The Audio Tab Configuration: Switch over to the Audio tab inside settings. Set both the Input and Output device choices to the USB Audio CODEC options you renamed earlier.
🛡️ 7. Preventing the Ultimate Enemy: RFI and Ground Loops
You can have the most expensive cables and the most meticulously configured software settings, but the moment your radio transmits a high-power signal close to a computer, you may experience a sudden drop in communication. Your software might freeze, your USB connection might drop with a classic Windows error sound, or your transmitted audio might become completely garbled. This frustrating problem is known as RFI (Radio Frequency Interference).
When you transmit digital data, if your antenna system has a high SWR or lacks a proper balun choke at the feed point, stray RF currents will travel right back down the outside shield of your coaxial cable directly into the radio shack. This stray electrical energy treats your computer cables like secondary antennas, inducing unwanted high-voltage currents that completely confuse the sensitive digital chips inside your PC ports.
🛠️ Practical Rules to Maintain a Bulletproof Shack Station
🧲 Wrap Your Cables in Ferrite Chokes: Buy a pack of clip-on Snap-On Type 31 or Type 43 Ferrite Cores. Wrap your USB cables and audio lines around these round magnetic chokes as many times as possible, right at the point where they plug into the computer and the radio. These ferrites act as high-resistance blocks for stray RF energy, while letting your clean data pass through untouched.
⚡ Implement a Unified Station Grounding Bus: Run a thick, low-resistance copper strap or a heavy-gauge braided wire from the chassis ground screw of your radio transceiver, the chassis of your computer case, and your external interface boxes directly to a single, solid metal grounding block or external ground rod. Keeping every device at the exact same ground voltage potential prevents stray current loops entirely.
📉 Keep Your Operating Power Reasonable: Digital modes like FT8 are designed for extreme weak-signal performance. You do not need to run your transceiver at 100 watts of full output power. Running your radio at high duty cycles for digital modes will overheat your final amplifiers and worsen local RFI issues. Keeping your power down between 10 to 30 watts is usually more than enough to make reliable, crystal-clear contacts globally.
🎙️ 8. Conclusion & Community Shack Log
Successfully interfacing your computer with your radio transceiver is one of the most rewarding milestones you can achieve in modern amateur radio. By carefully setting up your CAT control pipeline and taking the time to cleanly isolate your audio connections, you transform your station into a highly advanced, globally capable digital communications center.
The initial setup might require some troubleshooting with COM port numbers or adjusting audio sliders, but once everything is configured correctly, your station will work reliably for years. You will be able to easily log contacts in distant countries during poor solar conditions, track propagation anomalies scientifically, and contribute to the vibrant global digital community.
💬 What specific transceiver model and interface hardware are you using in your digital shack? Are you currently running into any frustrating virtual COM port errors or tricky audio distortion settings? Let’s troubleshoot together in the comment section below! Please leave your questions, share your station setup stories, and sign off with your official Call Sign!
📻 73 and brilliant DX to all! 📻
